Brand:
TSC · Barcode Printer
TSC PEX-1001 Series
Model: PEX-1001
Mindware: Your Trusted Partner for TSC PEX-1001 Series Barcode Label Printers, best prices for the TSC printers ,Best service center for the complete barcode printers and get best quality technical support from the…
Price on request · Discontinued — see replacement
Competitive pricing for bulk and repeat orders. Share your quantity for the best quote.
Genuine products
TSC Sales & Service Support
Pan-India delivery
Technical assistance
Mindware: Your Trusted Partner for TSC PEX-1001 Series Barcode Label Printers, best prices for the TSC printers ,Best service center for the complete barcode printers and get best quality technical support from the MINDWARE AT BEST PRICES.
We are leading service provider for complete barcode solution and printing needs at one stop solution on reliable services and supports.
The PEX-1001 Series combines precise printing mechanisms and powerful high-performance electronics with robust die-cast aluminum housing – ideal for the demanding areas of industry, production, transportation & logistics or, even healthcare. The PEX-1121 and PEX-1221 models impress with very high print speeds: 457 mm/sec. at a resolution of 203 dpi. The PEX-1131 and PEX-1231 models, which are up to 356 mm/sec. at 300 dpi, offer a well-balanced relationship between speed and resolution. With 600 dpi at 152 mm/sec., the PEX-1161 and PEX-1261 models achieve the highest print resolution. All models process labels up to 104 mm wide, using thermal transfer or direct thermal printing, as needed.
Technical Specification:-
| Specification | Details |
|---|
| Print Method | Direct Thermal and Thermal Transfer |
| Printing Resolution | 203 DPI |
| Max Print Width | 4.25 inches (108 mm) |
| Max Print Speed | 6 inches per second (IPS) |
| Connectivity Options | USB 2.0, Ethernet, RS-232 |
| Memory (RAM) | 64MB SDRAM |
| Flash Memory | 128MB Flash |
| Display | Color TFT LCD, 3.2 inches |
| Label Roll Capacity | 8 inches (203.2 mm) outside diameter |
| Label Roll Core Diameter | 3 inches (76.2 mm) |
| Media Types Supported | Thermal transfer and direct thermal labels |
| Operating Temperature | 40°F to 104°F (4°C to 40°C) |
| Dimensions (W x H x D) | 10.6? x 9.6? x 16.3? (269 mm x 244 mm x 414 mm) |
| Weight | 25.8 lbs (11.7 kg) |
| Power Requirements | 100-240V AC, 50-60 Hz |
| Warranty | 1-year limited warranty |
Contact us for specification. Detailed specifications for TSC PEX-1001 Series are available on request.

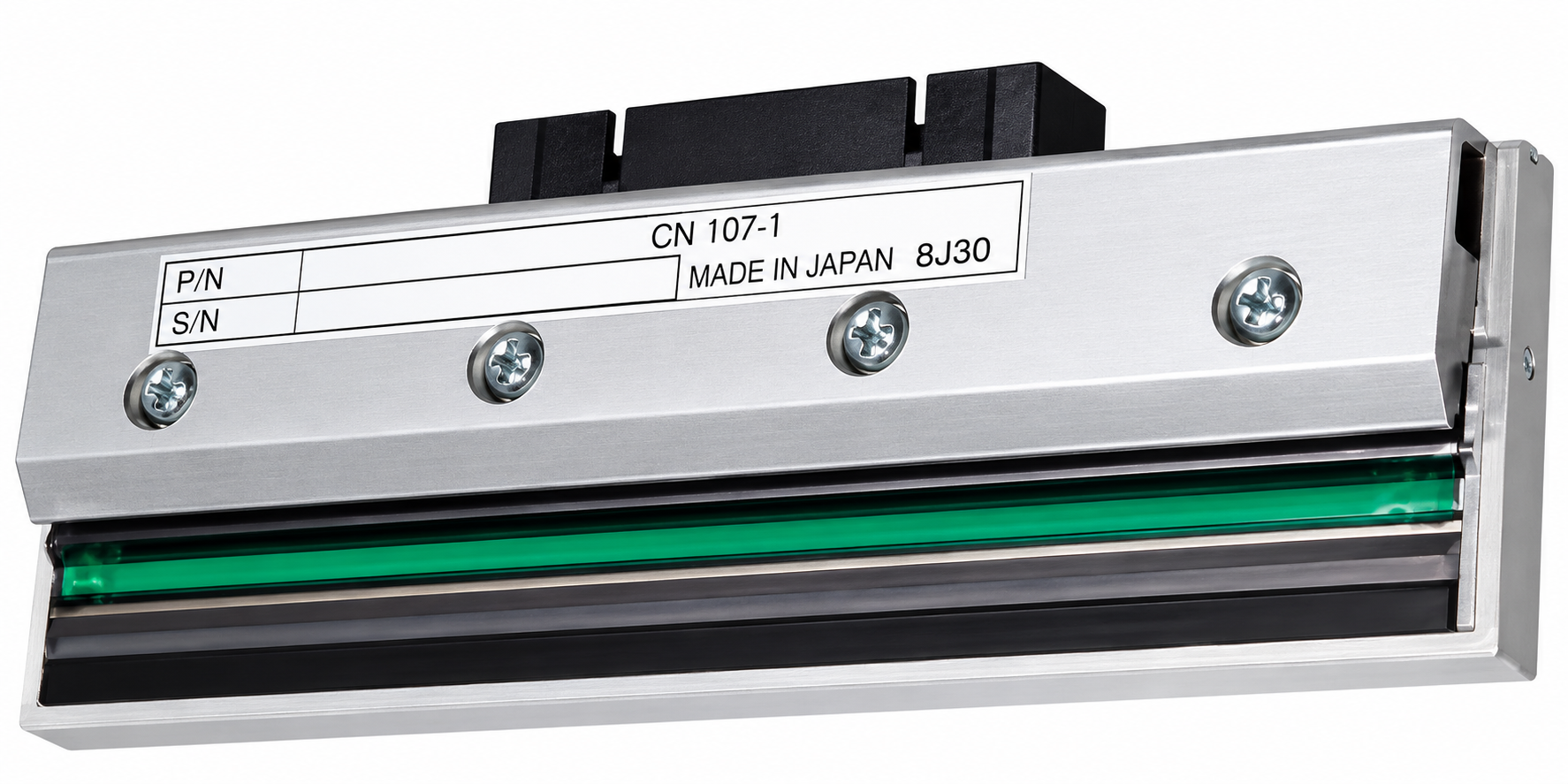

Compatible Printheads
Compatibility is listed only where verified against manufacturer documentation. Not sure? Ask us with your printer model.
Warranty
Warranty as per manufacturer terms applicable in India. Contact us for the warranty period of this model.
Service & support
- TSC Sales & Service Support — installation, driver & network setup and calibration available as paid services
- Printhead replacement, spare parts and consumables (labels, ribbons)
- Annual maintenance contracts (AMC) and on-site / depot service where available
Call +91-8527522688 · E-mail gm@indianbarcode.com
