Brand:
TSC · Barcode Printer
TSC TTP 384MT Label Printer
Model: TTP-384MTSeries: TTP Series (8-inch)
TSC TTP-384MT 8-inch Industrial Barcode Printer 300 dpi — 300 dpi (12 dots/mm), 4 ips (102 mm/s), Thermal transfer / Direct thermal. The 8-inch TTP-286MT / TTP-384MT print labels up to 8.5" wide — so wide-format and lateral barcodes print without image rotation — on a…
Price on request · Available on Request
Competitive pricing for bulk and repeat orders. Share your quantity for the best quote.
Genuine products
TSC Sales & Service Support
Pan-India delivery
Technical assistance
The TTP-286MT Series is a high-performance wide-format thermal transfer printer designed for a variety of labeling and signage applications. This series consists of two models, each offering different features for diverse printing needs. Both models are designed for compliance labeling, brand marketing, inventory control, drum labeling, warning signs, and more. Here's a breakdown of the key features:
Models:
- TTP-286MT:
- Resolution: 203 dpi
- Print Width: 8.5 inches
- Print Speed: 6 inches per second (152 mm/second)
- TTP-384MT:
- Resolution: 300 dpi
- Print Width: 8.64 inches
- Print Speed: 4 inches per second (102 mm/second)
Wide-Format Printing:
- The TTP-286MT Series can print on labels up to 9.5 inches wide, with maximum print widths of 8.64 inches at 300 dpi and 8.5 inches at 203 dpi, making it ideal for wide-lateral barcodes and signage without the need for image rotation.
Enhanced Performance:
- The series features a faster processor and increased memory, with 512 MB Flash and 256 MB SDRAM, ensuring the ability to print high-quality labels quickly and efficiently.
Connectivity Options:
- Standard connectivity options include internal Ethernet, USB 2.0, USB host, parallel, and serial interfaces, providing flexibility for different networking and device connections.
Color Touch Display:
- Both models come equipped with a 4.3-inch color touch LCD panel, providing an intuitive user interface with a 6-button control for easy setup and job status monitoring.
Durability and Reliability:
- The TTP-286MT Series is built with a rigid die-cast aluminum frame, making it suitable for use in harsh industrial environments. It also supports large label rolls with an 8.2-inch outer diameter and can accommodate up to 600-meter ribbons for high-volume printing.
Media Handling:
- The center-bias media handling mechanism makes media loading and adjustment simple, improving ease of use and reducing downtime.
Warranty:
- The TTP-286MT Series comes with a two-year limited warranty, offering peace of mind to users.
Advantages:
- Wide Format: Ideal for printing large labels, banners, and signage.
- High-Speed and High-Quality: Fast printing speeds combined with high-resolution options for clear, sharp prints.
- Versatile Connectivity: Multiple standard connectivity options for easy integration into various environments.
- User-Friendly Interface: The color touchscreen and simple controls make it easy to operate.
- Built for Tough Environments: The durable frame and large media capacity ensure it can handle demanding industrial environments.
| Printing |
| Resolution | 300 dpi (12 dots/mm) |
|---|
| Print method | Thermal transfer / Direct thermal |
|---|
| Max. print speed | 4 ips (102 mm/s) |
|---|
| Max. print width | 8.64" (219.5 mm) |
|---|
| Max. print length | 200" (5,080 mm) |
|---|
| Media |
| Media width | up to 9.5" (241.3 mm) |
|---|
| Media types | Continuous, die-cut, black mark, fan-fold, notched |
|---|
| Label roll capacity | 8.2" (208 mm) OD roll |
|---|
| Ribbon |
| Max. ribbon length | 600 m |
|---|
| Ribbon width | 4.3" – 10" (110 – 254 mm) |
|---|
| Memory |
| RAM | 256 MB SDRAM |
|---|
| Flash | 512 MB (SD card expansion up to 32 GB) |
|---|
| Connectivity |
| Interfaces | Ethernet, USB 2.0, USB Host, Parallel, RS-232, GPIO, Bluetooth |
|---|
| Display | Colour LCD touchscreen with buttons |
|---|
| Physical |
| Construction | Die-cast aluminium frame |
|---|
| Software |
| Printer language | TSPL-EZD (auto-switching emulation of major printer languages) |
|---|
| Fleet management | TSC Console |
|---|
| Options |
| Cutter | Optional guillotine or heavy-duty cutter (full cut) |
|---|
| Warranty |
| Warranty | 2-year limited (standard, as published by TSC) |
|---|
Specifications based on manufacturer documentation (verified Sep 2026). Subject to change without notice.
Pallet and drum labels, chemical GHS labels, A4-size compliance documents, textile and carpet tags, wide shipping labels.

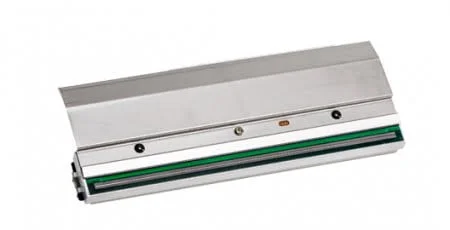

Compatible Printheads
Compatibility is listed only where verified against manufacturer documentation. Not sure? Ask us with your printer model.
Datasheet / Specification
TSC_384M_Printer_Barcode_Printers.pdf
Download
Warranty
Warranty as per manufacturer terms applicable in India. Contact us for the warranty period of this model.
Service & support
- TSC Sales & Service Support — installation, driver & network setup and calibration available as paid services
- Printhead replacement, spare parts and consumables (labels, ribbons)
- Annual maintenance contracts (AMC) and on-site / depot service where available
